Seamless tube-to-tape packaging automation for maximum efficiency
Easily handle and convert tube-packaged components into organized tape packaging, saving time and boosting efficiency.
KST-UT80
Automatic Tube to Tape Packaging Machine
Automated Component Feeding and Alignment
The KST-UT80 utilizes advanced feeding systems and CCD camera technology to automatically align and position components with high precision. This automation ensures consistent orientation, reduces manual handling, and significantly improves packaging efficiency
Orientation & Marking Inspection & Defect Removal
Equipped with three CCD cameras, the system inspects visual features of components, including markings, characters, dimensions, and missing parts, ensuring high packaging yield and product quality.
Tube to Tape Machine Specifications
| Feature | Specification |
|---|---|
| Feeding | Tube feeding |
| Supported Carrier Tape | Width ≤ 44mm, Depth ≤ 15mm |
| Capacity | Approx. 5-15K pcs/h (Depend on component specifications) |

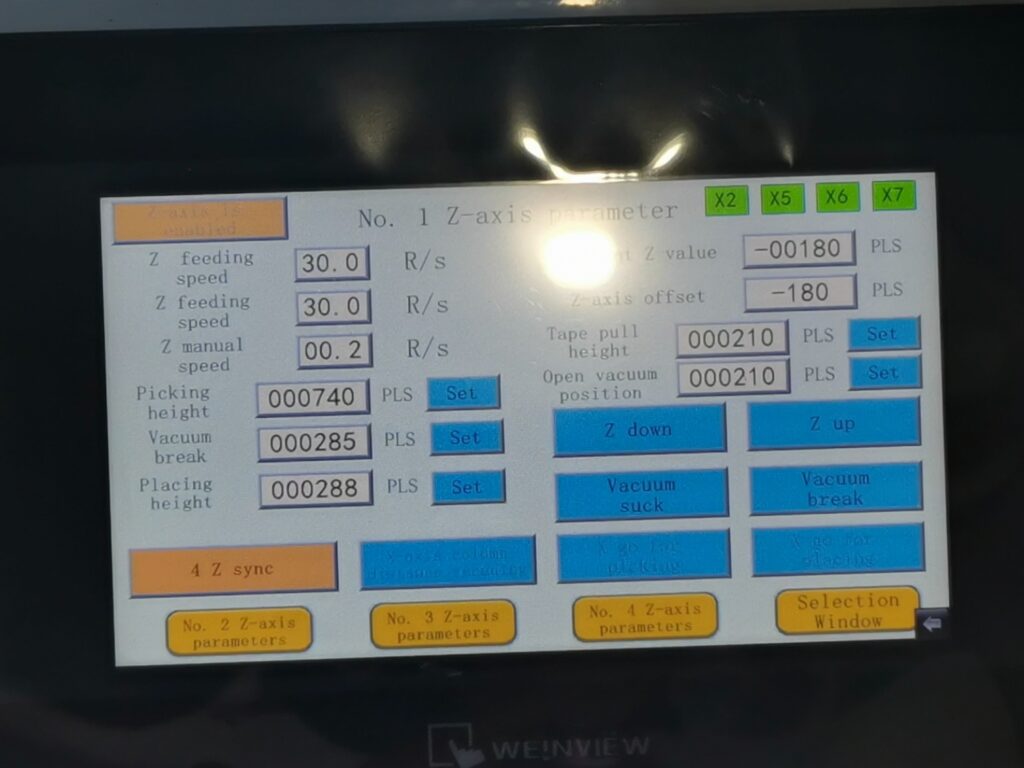

| Control System | PLC + Touchscreen |
| Visual Inspection | Available |
| Counter | Available |
| Sealing | PSA / Heat Sealing |
| Dimensions | L1040mm x W1020mm x H1400mm |
| Power Supply | AC220V / 50Hz |
| Air Supply | 4.0kg/cm²~8.0kg/cm² |
| Rated Power | 4.5kw |
The Tube to Tape Machine operates through a simple, automated process:

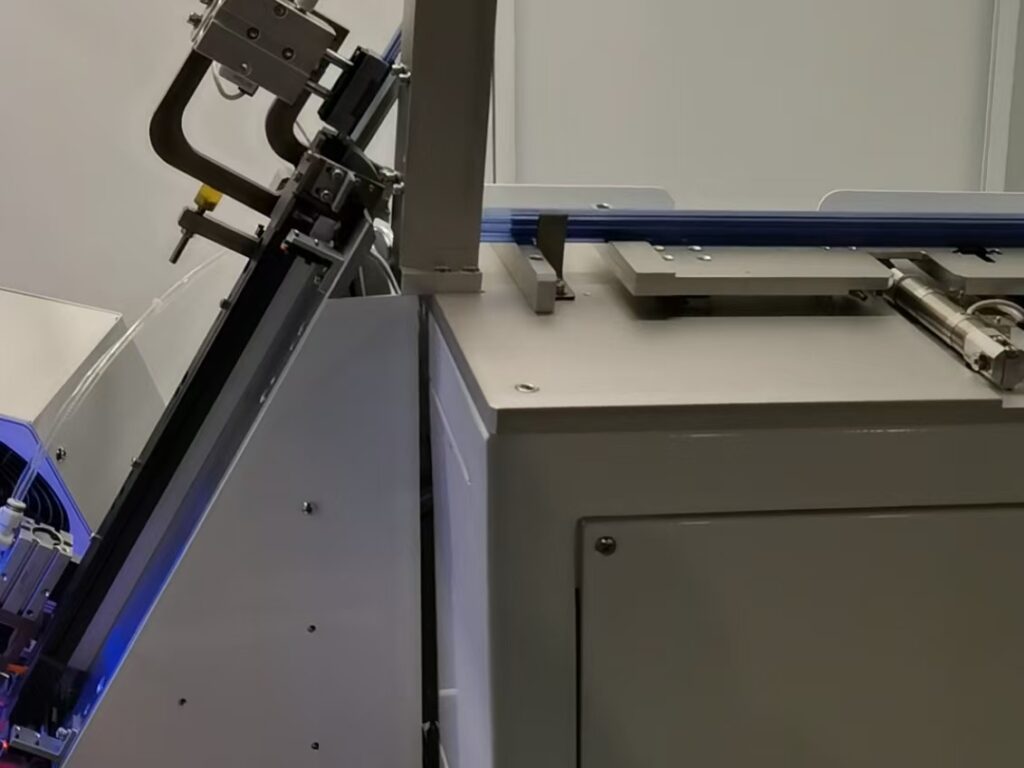

- Component Loading: Tube-fed components are loaded into the machine automatically.
- Pick and Place: The machine uses a robotic arm to pick and place the components from the tube at the pick-up point, accurately positioning them onto the tape. This ensures proper placement and alignment of each component, minimizing errors and enhancing consistency.

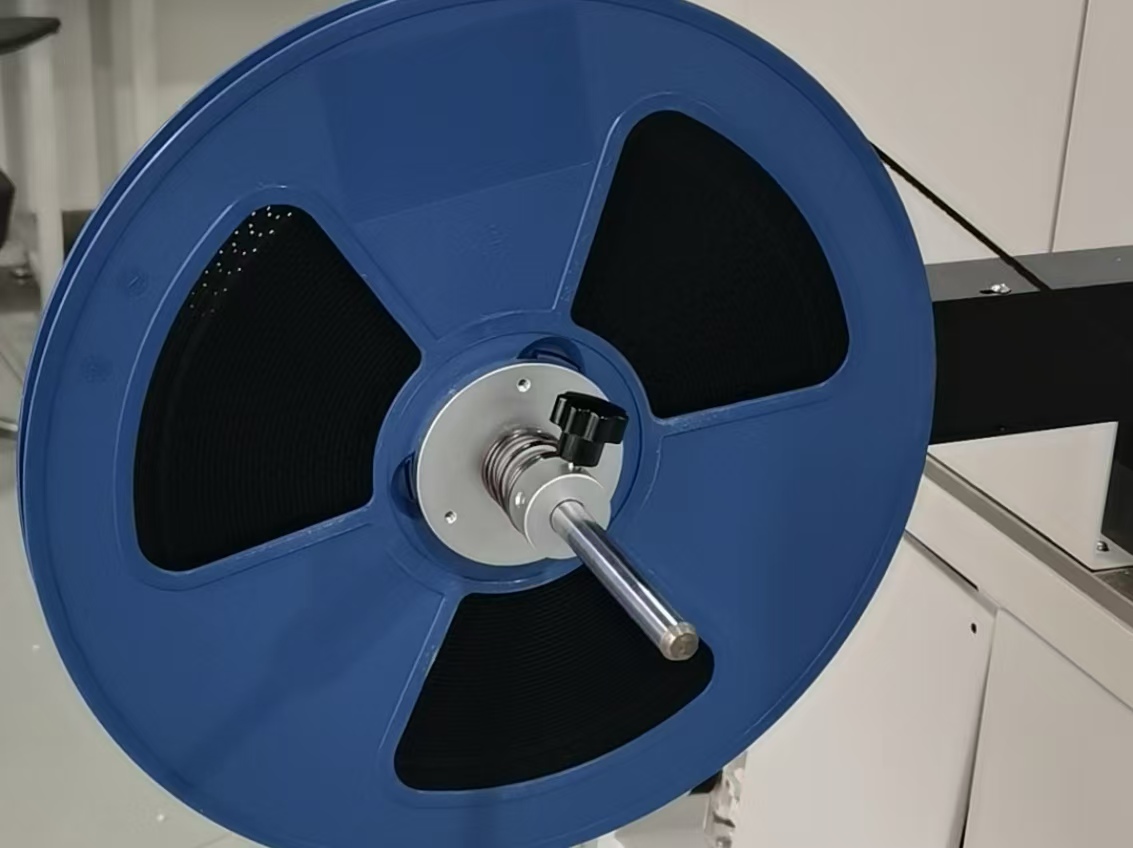

- Sealing and Winding into Tape: Once the components are securely placed on the tape, they are wound onto reels, ready for the next stage of production or shipping.
- Inspections are Available: Inspection systems can be integrated into the machine according to customer requirements. These checks can ensure the quality and precision of the components, verifying aspects such as placement accuracy and component integrity before they proceed to the next stage in the production process.
FAQ
A: Consider the following key points:
1. Your components types/specifications – Make sure the machine can handle your products.
2. Throughput– Verify it meets your product demand.
3. Required inspection functions – For example, dimension checks, characters or marking inspections.
4. Reliable warranty & After-sales Support – Consider warranty terms, technical support, and spare parts availability.
A: It usually takes about 15-35 working days, depending on the customer requirements and production schedule of the facility.
A: The machine’s visual inspection can check appearance, orientation, dimensions, pins, alignment, and other features, tailored to the customer’s specific requirements.
A: The standard warranty period for the machine is 12 months from the date of delivery.
A: The throughput depends on customer’s requirements, components specifications and machine configuration.
