KST-TR19
Automated Turret taping machine for SMD components
The KST-TR19 has a turret design and uses a vibratory bowl to feed materials like electronic components. It also has an automatic hopper to add more materials as needed. The vibratory bowl adjusts the position of the materials using its design and sensors, then moves them to a straight vibrating track. The turret picks up materials from the track, and each station can handle tasks like testing, positioning, or removing defective items. The turret tape-and-reel machine is fast and efficient, making it a great choice.
Parameters
Production output:Carrier tape pitch 2-144mm, 8-72mm width
Capacity: UPH 8-25K ( limited by input device and processes required）
Feeder: vibration bowl
Control method: PLC + touchscreen + servo motor
Working environment: -5℃-50℃(No corrosive gas, harmful gas, flying dust, etc.）
Dimensions: L1500mm * W740mm * H1600mm
Power supply: single phase AC220V/50HZ
Air supply: 0.4-0.9Mpa
Ability to rotate components：360-degree rotations, with the rotation angle set according to product requirements
Power supply: single phase AßC220V/50HZ
Air supply: 0.4-0.9Mpa
Features& benefits
User-Friendly Touchscreen interface
Vision inspection: available(CCD, or 5-sided & 3D)
Function test：available(supports multiple sites around the turret)
Defect Detection & Waste Removal: available
Laser marking: available
Self-adhesive or heat- sealing
Optional Extras
Get in touch with our sales and technical team to customize a machine to suit your needs today!
contact us to customize your machine
Turret Tape & Reel Packaging Solutions
What Is a Turret Taping Machine?
A turret taping machine is used for tape-and-reel packaging, which is common for electronic parts like metal parts and modules. The turret design lets multiple tasks happen at the same time, such as testing, positioning, and removing defective parts. This makes the process smooth and efficient.
Key Features of Our Turret Taping Machine
High-Speed Performance
Our high-speed turret taping machine works quickly and accurately, perfect for large production runs.
CCD Inspection Integration
An optional CCD inspection module checks for defects with high accuracy, ensuring only good parts are packaged.
Customizable Options
We can create customized turret taping machines to fit your specific needs, like handling unique part sizes or special packaging.
Why Choose Us?
Experience: As a top tape and reel machine supplier in China, we bring years of industry expertise.
Quality Assurance: Our machines are thoroughly tested for reliability and durability.
Competitive Pricing: We offer turret taping machines at prices that give great value.
Support: We provide maintenance tips and services to keep your machine running smoothly.
Contact Us
Need a turret taping machine for electronic components? Contact us today for more details, pricing, or customization options
equipments we make
Related Products

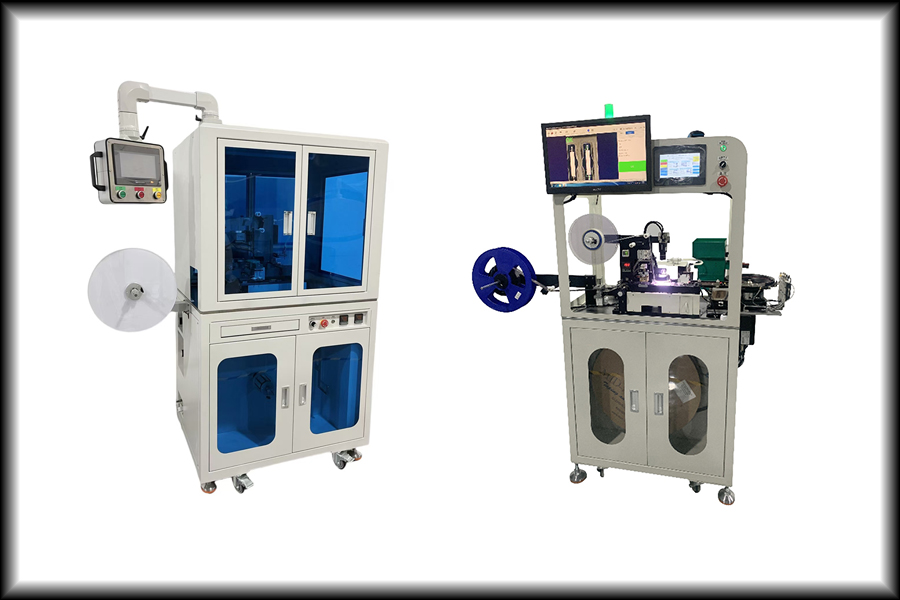

Vibration Bowl Tape and Reel Machine
The vibration bowl tape and reel machine uses a vibrating bowl to efficiently orient and feed components into the taping system, ensuring precise and automated packaging for high-speed production.
Multi-Functional Tape and Reel Machine
Using a flexible feeding system, this machine can handle various sizes and shapes of electronic components, making it suitable for manufacturers with diverse taping requirements and medium-batch production needs.

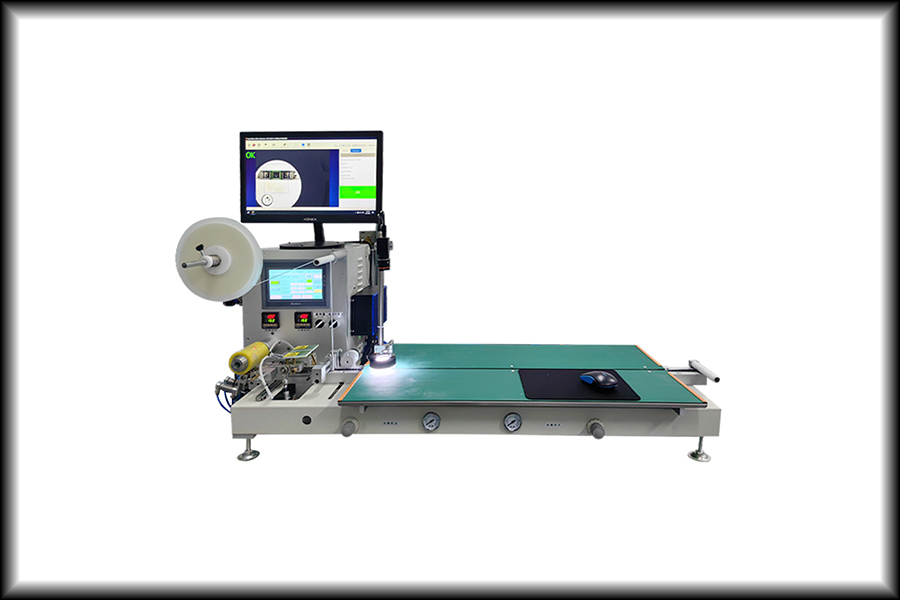

Semi-Automatic Tape and Reel Machine
