Efficiently transfer bulk components into tape packaging
One machine, multiple components—from small hardware to ICs, sensors, resistors, and beyond.
KST-FB20
Multi-functional Tape and Reel Machine
Compatible with a wide range of SMD Components
The KST-FB20 efficiently handles a wide range of SMD products, combining pick-and-place, inspection, and defect removal in one flexible system. Multiple input options and a user-friendly touchscreen make setup easy and operations smooth, reducing the need for extra machines.
Orientation & Marking Inspection & Defect Removal

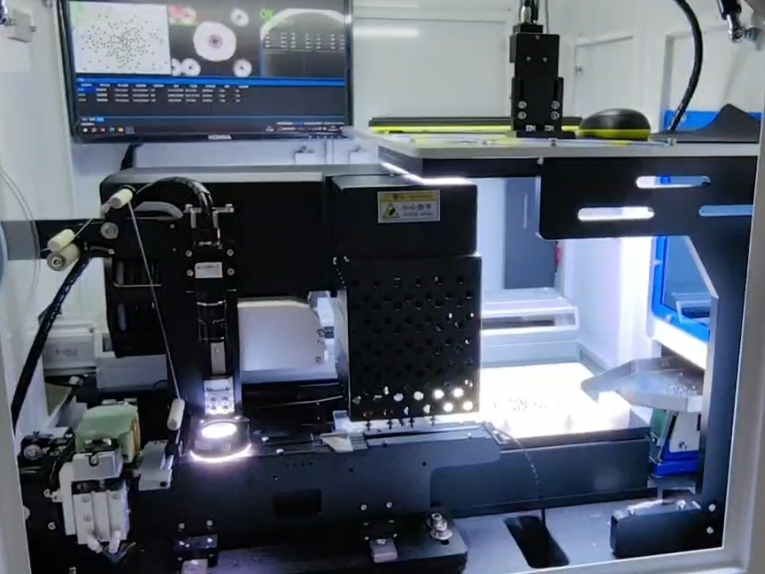

Equipped with three CCD cameras, the system inspects visual features of components, including front and back markings, characters, dimensions, and missing parts, ensuring high packaging yield and product quality.
Multifunctional Tape and Reel Machine Specifications
| Feature | Specification |
|---|---|
| Feeding | Flexible Feeder |
| Supported Carrier Tape | Width ≤ 32mm, Depth ≤ 10mm |
| Capacity | Approx. 3-5K pcs/h (Depend on component specifications) |
| Control System | PLC + Touchscreen |
| Visual Inspection | Available |
| Counter | Available |
| Sealing | PSA / Heat Sealing |
| Dimensions | L2204mm x W960mm x H2204mm |
| Power Supply | AC220V, 50Hz |
| Air Supply | 4.0kg/cm²~6.0kg/cm² |
| Rated Power | 4.5kw |

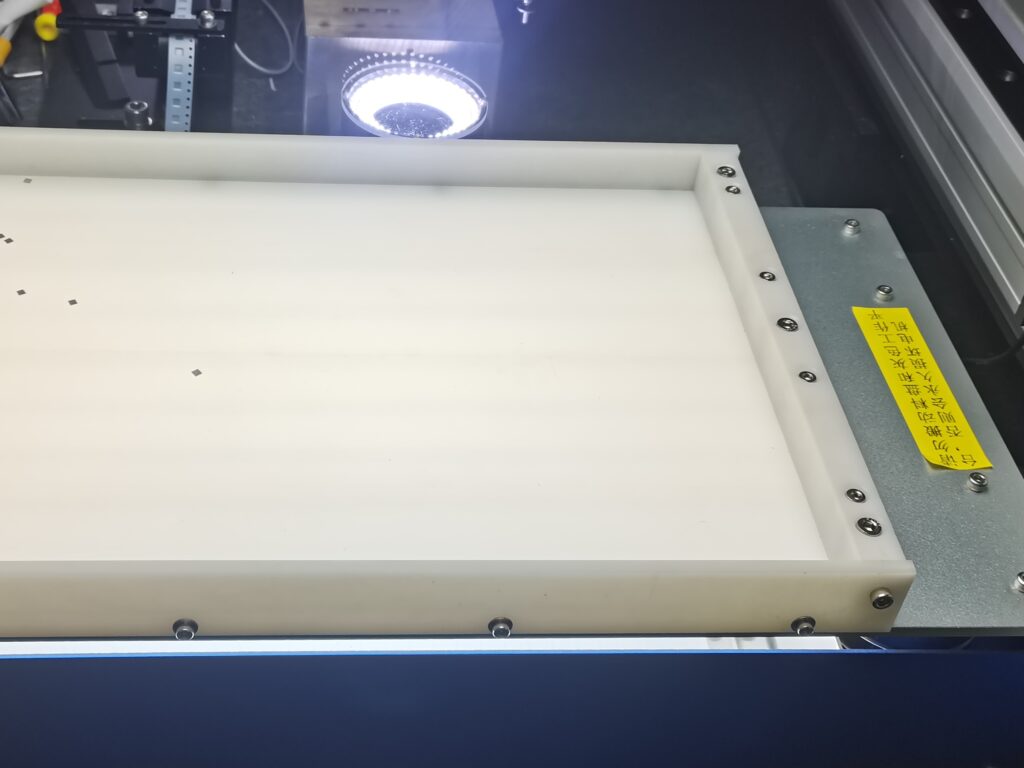

This machine is great for packaging a wide range of parts, including ICs, connectors, metal stamping parts, sensors and more. Since The flexible feeder can handle different types of products, ensuring no damage to their surfaces.
FAQ
A: The machine’s workflow is as follows:
1. Feeding and Alignment – First, parts are loaded into a flexible vibration bowl, where CCD cameras carefully align and position them. This step ensures that every part is correctly oriented before moving to the next stage.
2. Pick and Place – Next, a robotic arm with a vacuum nozzle picks up the aligned parts and transfers them to the inspection station.
3. Inspection – Any defective parts are automatically removed, while good parts are placed onto the carrier tape.
4. Automatic sealing and Winding – Finally, the machine seals the tape and winds it onto reels.
A: Consider the following key points:
1. Your components types/specifications – Make sure the machine can handle your products.
2. Throughput– Verify it meets your product demand.
3. Required inspection functions – For example, dimension checks, characters or marking inspections.
4. Reliable warranty & After-sales Support – Consider warranty terms, technical support, and spare parts availability.
A: It usually takes about 15-35 working days, depending on the customer requirements and production schedule of the facility.
A: The machine’s visual inspection can check appearance, orientation, dimensions, pins, alignment, and other features, tailored to the customer’s specific requirements.
A: The standard warranty period for the machine is 12 months from the date of delivery.
