Semi-Automatic Taping machine
Compatible with a wide range of surface mount components packaging, perfect for small-batch runs.
Not sure which model fits your components? Tell us your component specs and we’ll recommend the right solution.
Phone: +86 19168720896

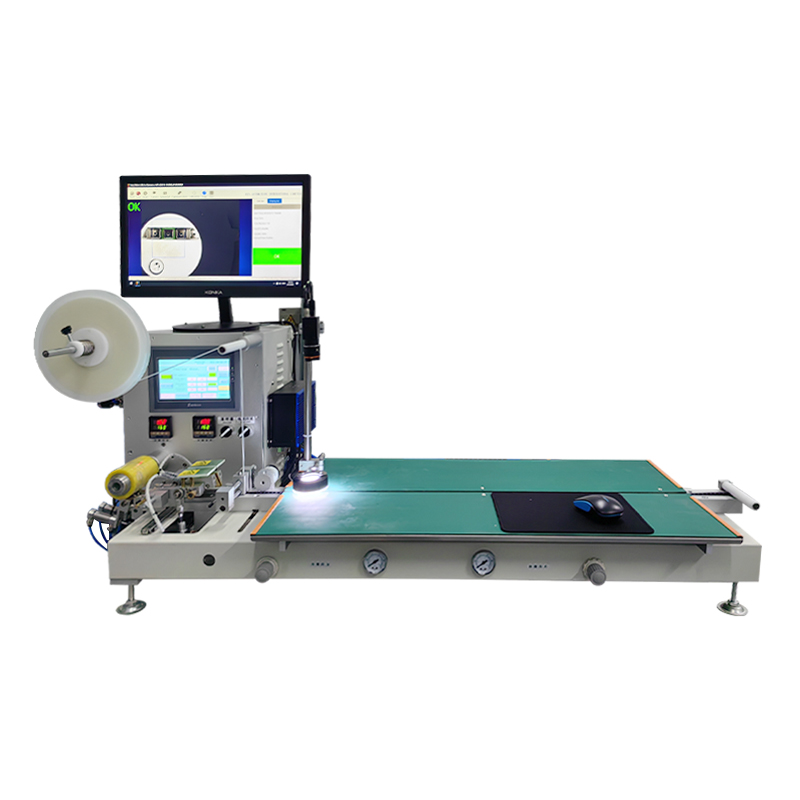

KST-SEMi10
Semi-Automatic Tape & Reel Machine
This semi-automatic taping machine is easy to use. It’s designed for packing various electronic components into carrier tapes with cover tape sealing. It works with tape widths from 8mm to 72mm.
Product Specifications
Feeding Method: Manual Loading
Applicable Tape Width: 8-72mm
Max Pocket Depth: 18mm
Input/Output Reel Diameter: 7-inch(178mm), 13 inch(330mm), 15-inch(380mm), 22-inch(560mm)
Control System: PLC +Touchscreen
Operation Mode: Touchscreen control or foot pedal control
Sealing Mode: Cold(PSA) and Hot sealing
Tape Pulling Mode: Continuous/ Inching Mode
Counter: Encoder Counting, intergrated into touchscreen
Power Supply: AC 220V, 50Hz
Air Supply: 3.0kg/cm²~6.0kg/cm²
Optional Features
CCD Visual Inspection: Ensures component quality by detecting dimensions, characters, marking, orientations, and other key attributes.
Empty Pocket Detection: Prevents missing components during tape & reel packaging
Benefits To You
Adjust tape width accurately with two screws.
Works with both cold and hot sealing.
Adjusts tape pitch from 4mm to 40mm.
Change pressure, heat, and speed to get the best results.
Easy to clean and fix.
Ensures smooth and accurate operation.
Counts components accurately.
