Efficiently transfer bulk components into tape packaging
Fast and Reliable Performance, Specifically Designed for Your Components

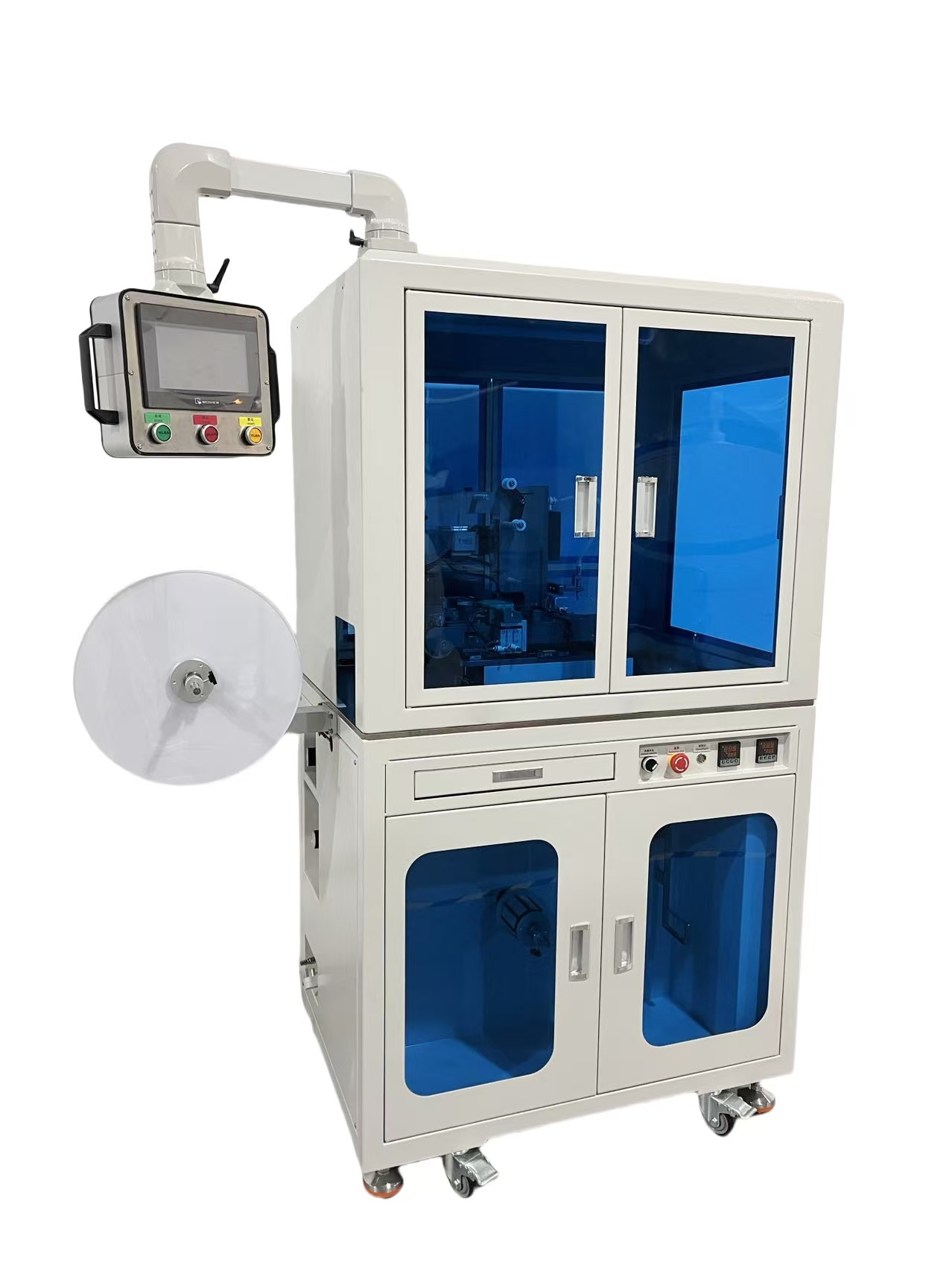

KST-RA10
SMD Parts Packing Machine
Perform Bulk to Tape Packaging Process

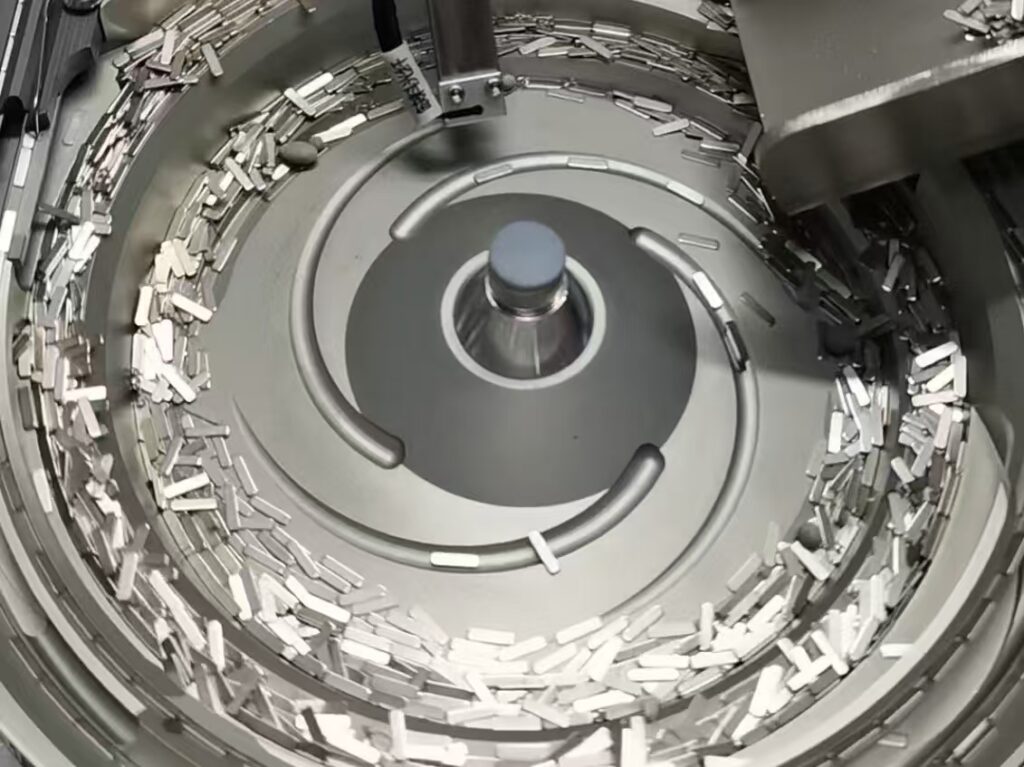

The KST-RA10 is an automatic system designed to package small parts such as metal pins, sensors, resistors, switches, and other electronic components. It uses a vibration bowl feeder to load the parts, ensuring accurate alignment and precise placement onto the tape. Once taped, the components are wound onto reels, ready for storage, shipping, or further processing.
CCD Inspection, Testing, Defect Removal Available
The system can be equipped with a CCD inspection system to check visual features of components, including front and back markings, characters, dimensions, and missing parts, ensuring high packaging yield and product quality. Additional testing and inspection functions can be built into the machine to maximize production yield and product quality.
SMD Parts Packing Machine Specifications
| Feature | Specification |
|---|---|
| Feeding | custom-made bowl feeder |
| Supported Carrier Tape | 8-72mm |
| Capacity | Approx. 5-20K pcs/h (Depend on component specifications) |
| Control System | PLC + Touchscreen |
| Visual Inspection | Available |
| Counter | Available |
| Sealing | PSA / Heat Sealing |
| Dimensions | L1500mm x W700mm x H1450mm |
| Power Supply | AC220V, 50Hz |
| Air Supply | 4.0kg/cm²~6.0kg/cm² |
| Rated Power | 4.5kw |

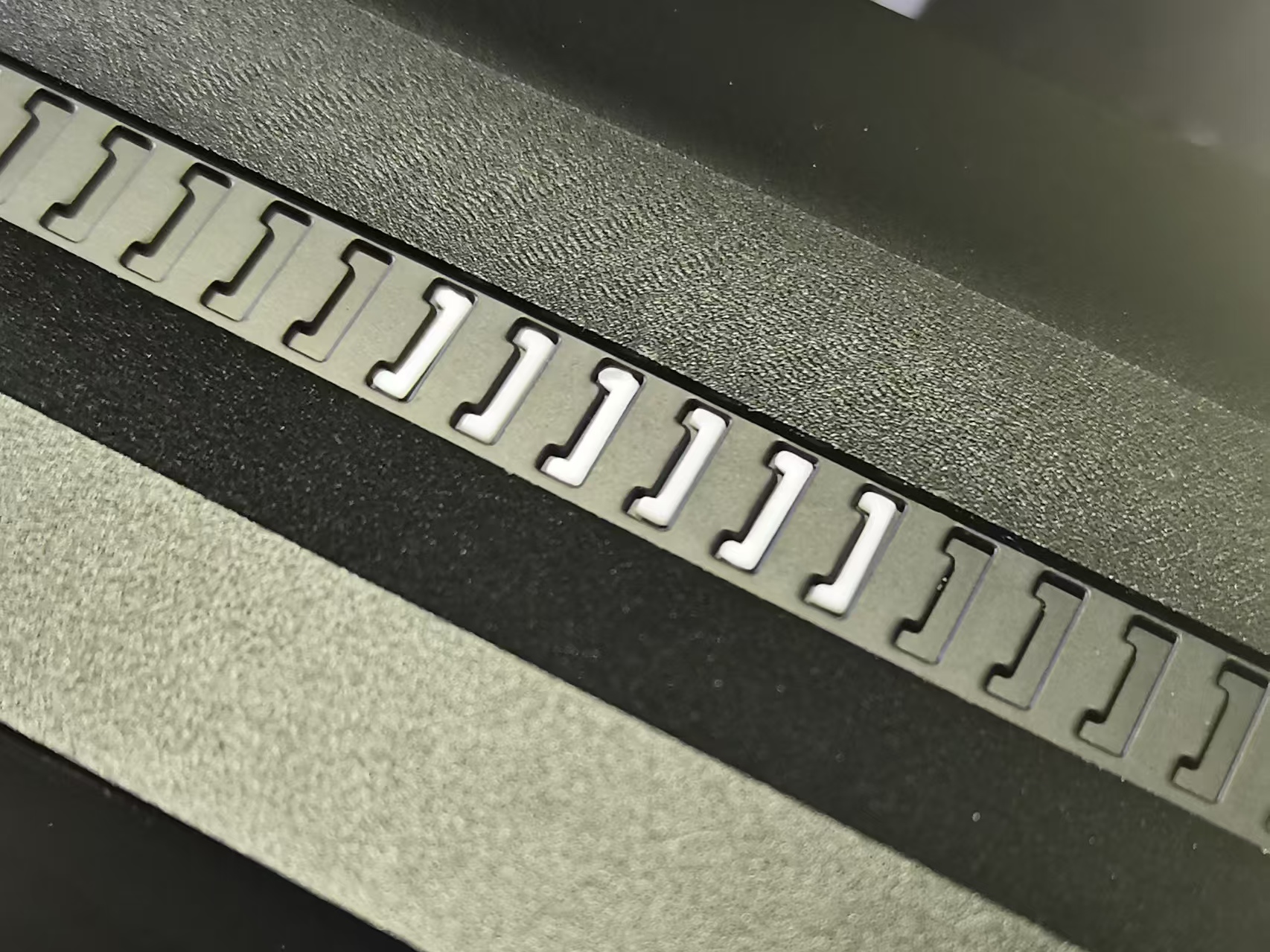

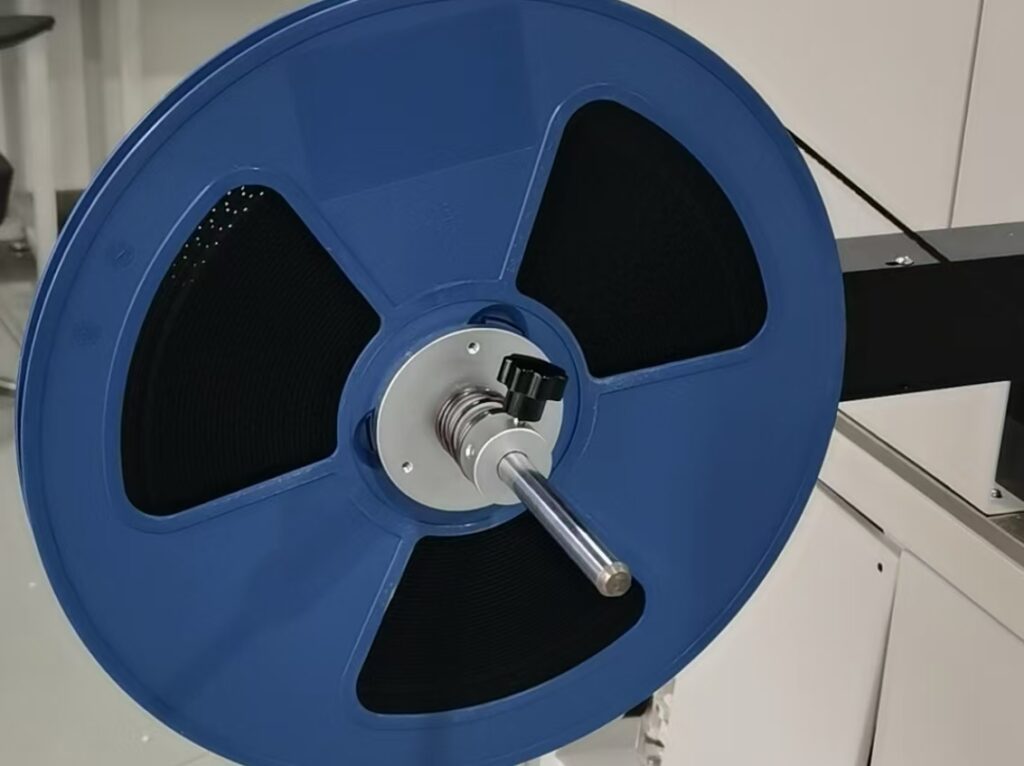

The KST-RA10 operates through a simple, automated process. Components are first loaded into a vibration bowl, where they are aligned and moved to the pick-up point. A robotic arm then picks up the aligned components and places them on the inspection station. During inspection, good parts proceed to the taping step, while any defective parts are discarded. Finally, the components are secured onto the tape and wound onto reels, ready for shipment or storage.
FAQ
A: Consider the following key points:
1. Your components types/specifications – Make sure the machine can handle your products.
2. Throughput– Verify it meets your product demand.
3. Required inspection functions – For example, dimension checks, characters or marking inspections.
4. Reliable warranty & After-sales Support – Consider warranty terms, technical support, and spare parts availability.
A: It usually takes about 35-40 working days, depending on the customer requirements and production schedule of the facility.
A: The machine’s visual inspection can check appearance, orientation, dimensions, pins, alignment, and other features, tailored to the customer’s specific requirements.
A: The standard warranty period for the machine is 12 months from the date of delivery.
A: The throughput depends on customer’s requirements, components specifications and machine configuration.
