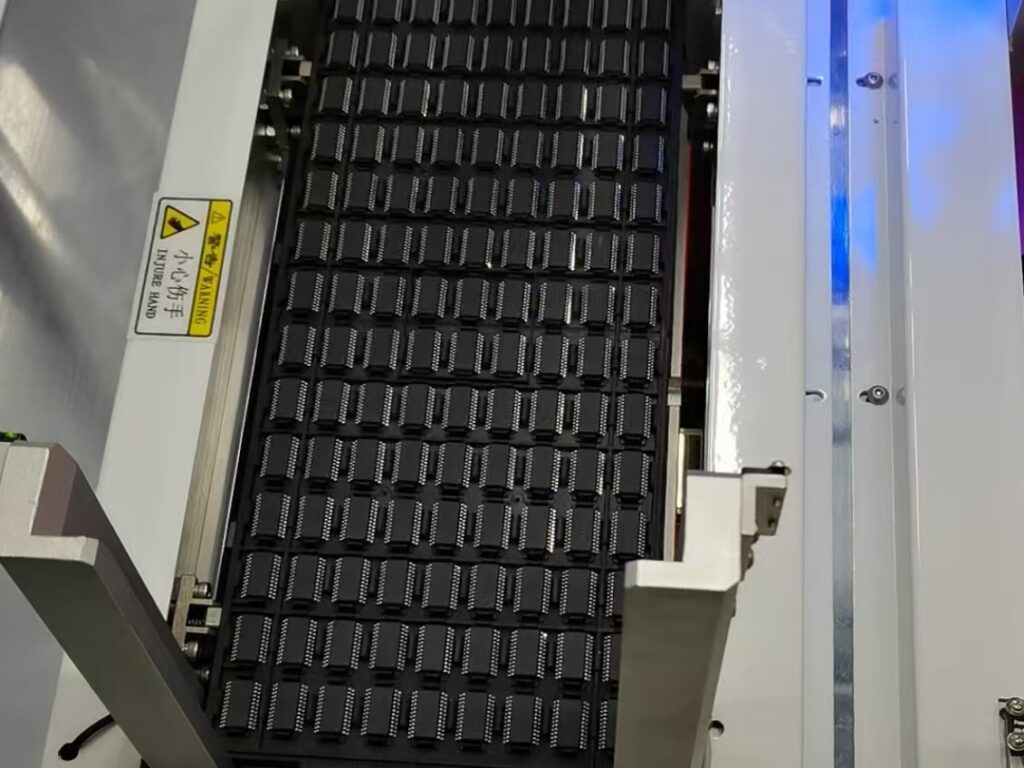

Automated transfer between Tube & Tray for efficient packaging
Automatically transfers IC components from tube packaging to tape packaging — ideal for IC rework and production automation
KST-TTR30
Automated Tube to Tray Packaging Machine
Perform Tube-to-Tray Packaging Process
The KST-TTR30 automatically converts components from tube to tray packaging, making it ideal for SOP, SOIC, SSOP, TSSOP, TSOP, QFP, TQFP, LQFP, QFN, DFN, MLF, flexible modules, and other tube-fed components. It features an automatic tube feeding system with gravity discharge and precise positioning.
Components Orientation & Marking Inspection

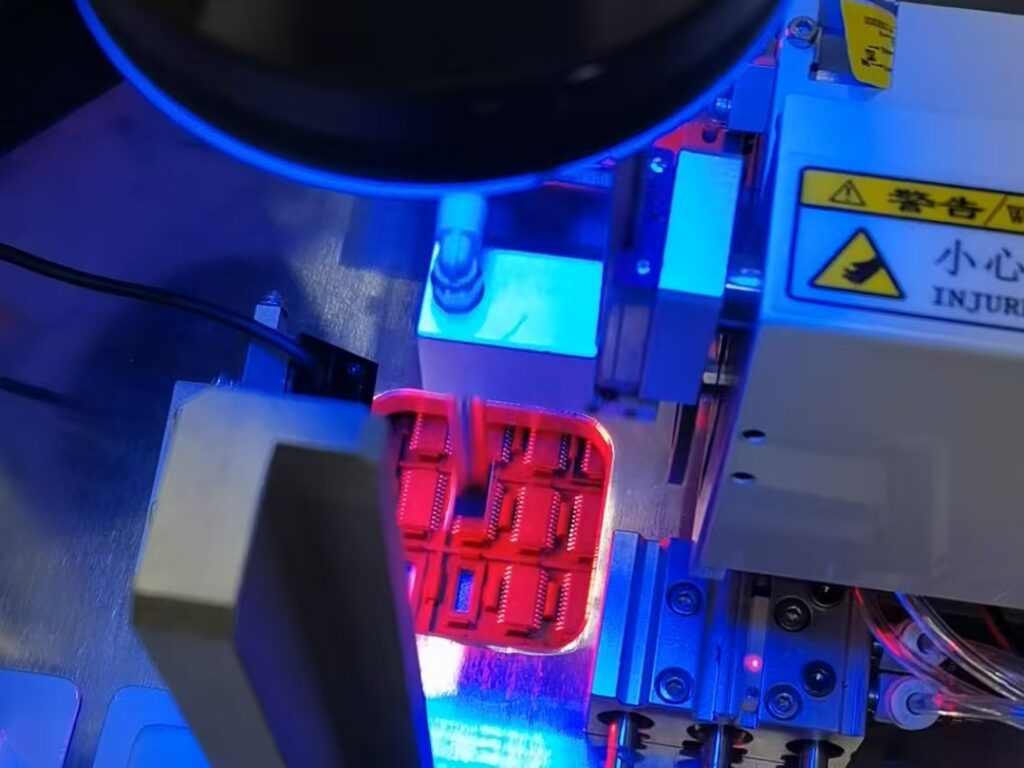

The KST-TTR30 can be equipped with a precise inspection system that verifies the correct orientation of each component and checks product markings and characters as required. This ensures high accuracy and quality during the tube-to-tray conversion process.
Tube & Tray Packaging Machine Specifications
| Feature | Specification |
|---|---|
| Feeding | Tube Feeding |
| Tray capacity | Stackable up to 20 layers |
| Capacity | Approx. 5-15K pcs/h (Device dependent) |
| Control System | PLC + Touchscreen |
| Visual Inspection | Optional |
| Dimensions | L1400mm x W 1500mm x H 1590mm |
| Power Supply | AC220V, 50Hz |
| Air Supply | 4.0kg/cm²~8.0kg/cm² |
| Rated Power | 4.5kw |
The machine can handle both standard and custom trays or tooling fixtures, ensuring precise, secure, and organized packaging of products, making it ideal for the semiconductor industry.
FAQ
A: Focus on the following key points:
1. Your components types/specifications – Make sure the machine can handle your products.
2. Throughput– Ensure it meets your product demand.
3. Inspection functions required – E.g. dimension check, character/mark inspection.
4. Reliable warranty & After-sales Support – Consider warranty terms, technical support, and spare parts availability.
A: Since it’s a custom-made machine, it usually takes about 35-40 working days.
A: The throughput depends on customer’s requirements, components specifications and machine configuration.
A: The machine can be equipped with visual inspection for appearance, orientation, dimensions, pins, alignment and more.
A: The standard warranty period for the machine is 12 months from the date of delivery.
