High Speed Turret Tape and Reel Packaging Machine for SMD Electronic Components
Custom-made machines for your parts — meet your needs, save labor costs, boost productivity

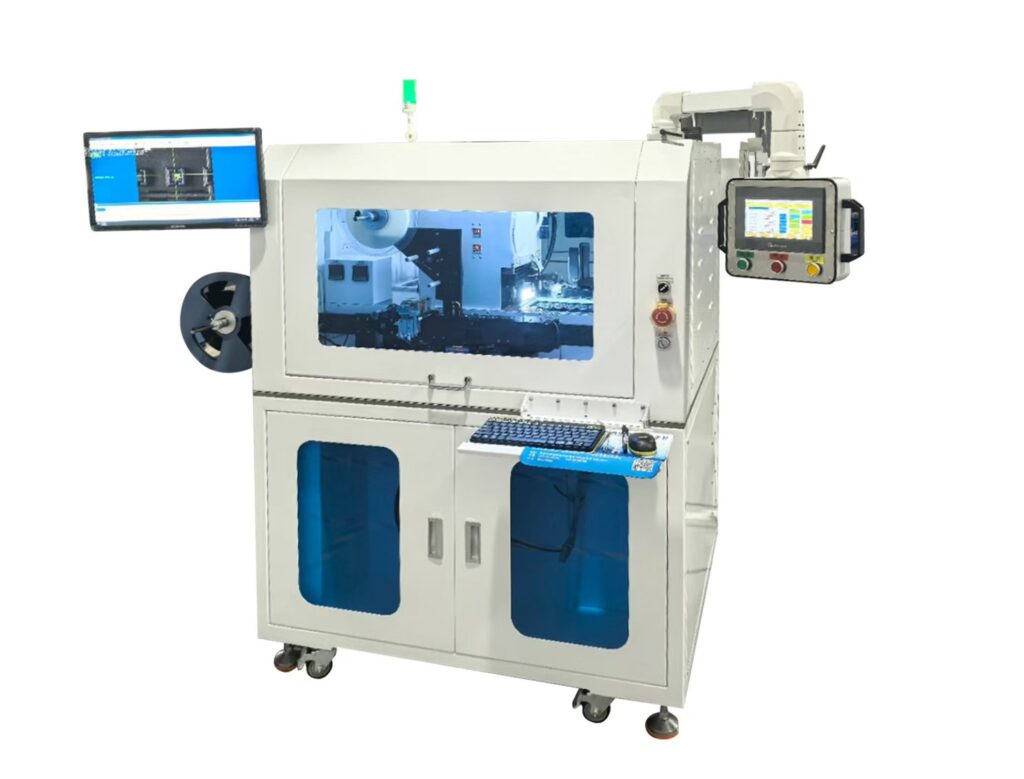

KST-TR19
Automatic Turret taping machine
High-Speed Precision with Flexible Automation

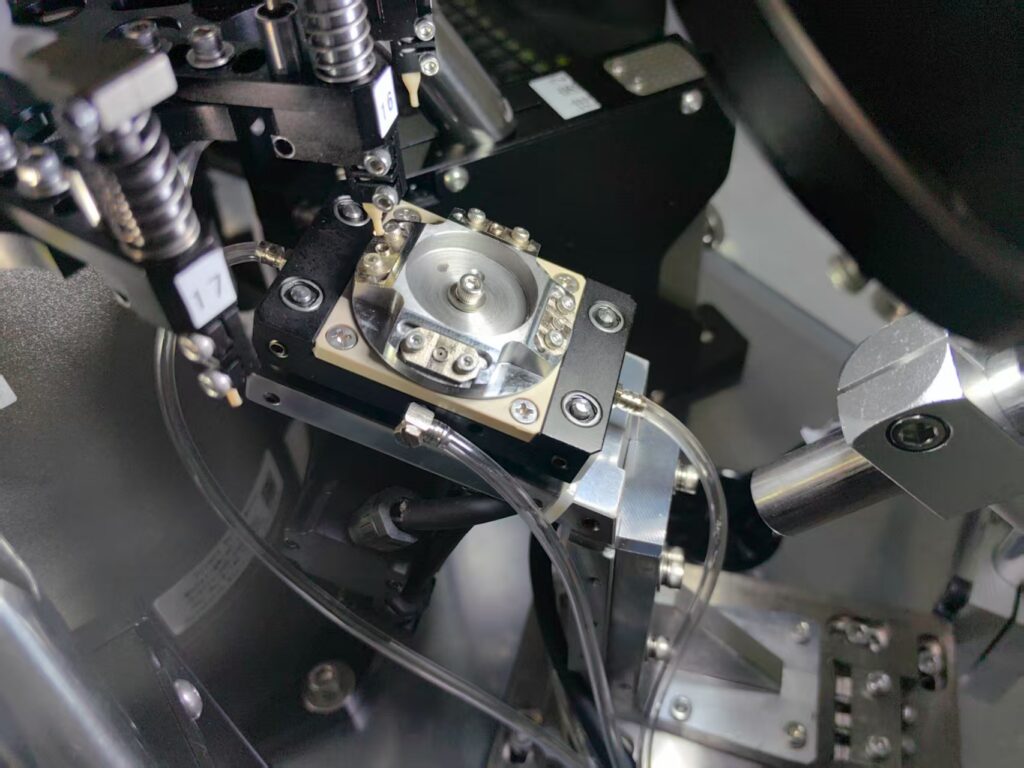

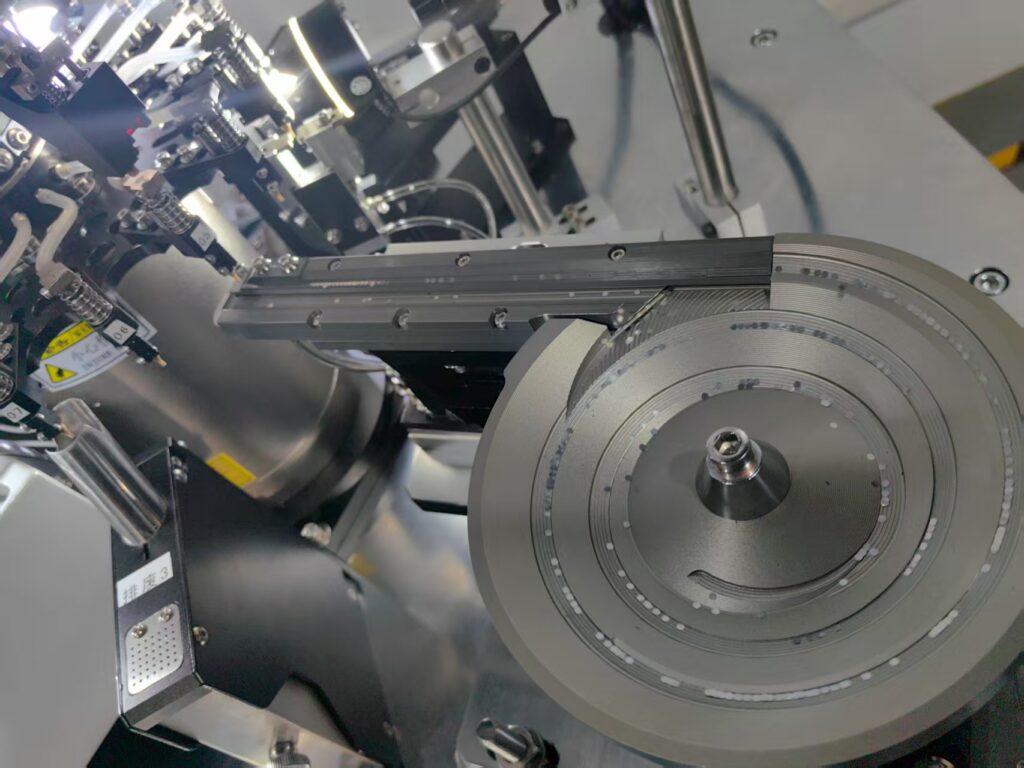

The KST-TR19 adopts a turret design with a specially engineered vibratory bowl for part feeding. The bowl orients and aligns the parts, then transfers them to designated pick-up points. From there, the nozzles collect the parts, and each turret station can perform tasks such as inspection, testing, positioning, or rejecting defective items. With its high speed and efficiency, the KST-TR19 turret tape-and-reel machine provides an outstanding solution for automated packaging needs.
Tailor-Made Automation for Your Unique Needs
The KST-TR19 turret tape-and-reel machine can be fully customized to meet your specific products and requirements. It is particularly suitable for a wide range of electronic components, including small metal stamping parts, QFN, QFP, TSSOP, SOIC, surface-mount connectors, resistors, and many other SMD devices.
High Speed Turret Tray & Tape Packaging Machine Specifications
| Feature | Specification |
|---|---|
| Feeding | Aluminum Bowl Feeder / Other custom feeder designed specifically for the parts |
| Capacity | Approx. 8-50K pcs/h (Device dependent) |
| Dimensions | L1500mm x W740mm x H1600mm |
| Power Supply | AC220V, 50Hz |
| Rated Power | 4.5kw |
| Counter | Internal pulse counting system |
| Sealing | PSA / Heat sealing |
| Visual Inspection | Available (CCD, or 5-sided & 3D) |
| Function Testing | Available (supports multiple sites around the turret) |
| Waste Removal | Available |
| Laser Marking | Available |
FAQ
A: Focus on the following key points:
1. Your components types/specifications – make sure the machine can handle your products
2. Taping speed & capacity – match your product demand.
3. Inspection functions required – e.g. dimension check, polarity check, missing part detection, character/mark inspection.
4. Flexibility & Changeover – consider how many types of parts you want the machine to handle.
5. Reliable warranty & after-sales support – consider warranty terms, technical support, and spare parts availability.
A: Since it’s a custom-made machine, it usually takes about 35-40 working days.
A: The throughput depends on customer’s requirements, components specifications and machine configuration.
A: The machine can be equipped with visual inspection for appearance, orientation, dimensions, pins, alignment and more.
A: The standard warranty period for the machine is 12 months from the date of delivery.
