KST-TTR30
Automated Tube-to-Tray Packaging machine
A tube-to-tray taping machine is a high-efficiency packaging device that automatically transfers components from tubes to trays, ensuring precise alignment and suitability for mass production.
Parameters
Feeder: tube feeding
Taping Speed: UPH 8-15K (device dependent)
Control Method: PLC + touchscreen + servo motor
Dimensions:L1400mm*W 1500mm*H 1590mm
Power supply: single phase AC220V/50HZ
Air supply: 0.5-0.8Mpa
Features& benefits
Automatic tube feeding system with gravity discharge and precise positioning
Automatic detection of empty tubes
Can check product direction, front/back, defects, and perform performance tests as needed
A laser / inkjet marking module available
Supports both self-adhesive and heat sealing
Optional Extras
Get in touch with our sales and technical team to customize a machine to suit your needs today!
<<Look for more automated machine>>
Tube to Tray Packaging Solutions
What Is a Tube to Tray Taping Machine?
A Tube to Tray Machine automatically transfers products packed in tubes, like IC chips, diodes, capacitors, and resistors, into trays. It suits industries that need precise, secure, and organized packaging for their components. The machine handles both standard trays and custom trays or tooling fixtures, ensuring the correct packaging and preparation of products for the next step in production or storage.
Key Features
Fully Automated: Automates the transfer from tube packaging to tray packaging, reducing manual labor.
Efficient Transfer: Quickly and accurately places products, such as IC chips, from tubes into trays, ready for the next production stage.
Customizable Tray Options: Works with both standard trays and custom tooling trays or fixtures to meet specific production needs.
Reliable and Stable: Operates smoothly and consistently, ensuring high efficiency throughout the process.
Cost-Effective: Reduces labor costs while improving packaging efficiency.
Applications
For Electronics:
The Tube to Tray Machine works well for packaging small electronic components, such as IC chips, diodes, capacitors, and resistors, that come in tube packaging. It secures these products in trays and prepares them for the next production step or safe shipping.
For Other Components:
The Tube to Tray Machine also adapts to a wide range of tube-packaged components, making it a versatile solution for various industries that need organized packaging and preparation for further manufacturing steps.
Why Choose Our Tube to Tray Machine?
High Quality: Built for durability and precision, ensuring long-lasting performance.
Efficient Production and save cost: Speeds up packaging and prepares products quickly for the next manufacturing step, while reduce manual labor and lower production costs.
Custom Solutions: We customize our machines to suit your specific packaging needs, including handling IC chips and other tube-packaged components. We can integrate inspection systems, electrical function tests, and other testing options.
On-Time Delivery: We prioritize on-time delivery to ensure you meet production deadlines.
Get In Touch
Want to learn more about our Tube to Tray Machine or discuss a custom solution for your packaging needs? Contact us today!
equipments we provide
Related Equipments

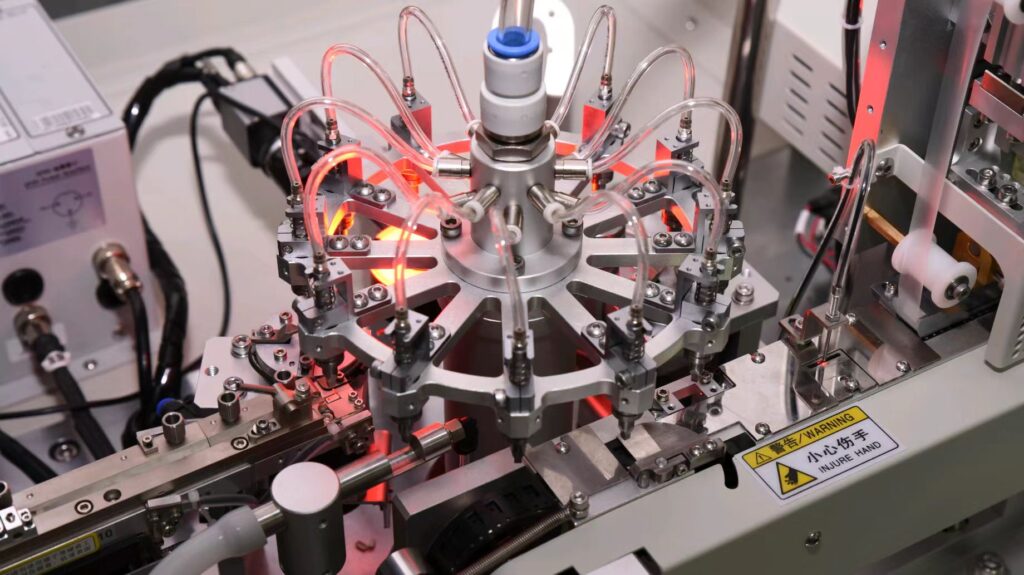

Automated Turret Taping Machine
The turret taping machine features a high-speed, efficient turret design that is ideal for large-volume production, allowing precise taping operations in a short time, commonly used for packaging electronic components.

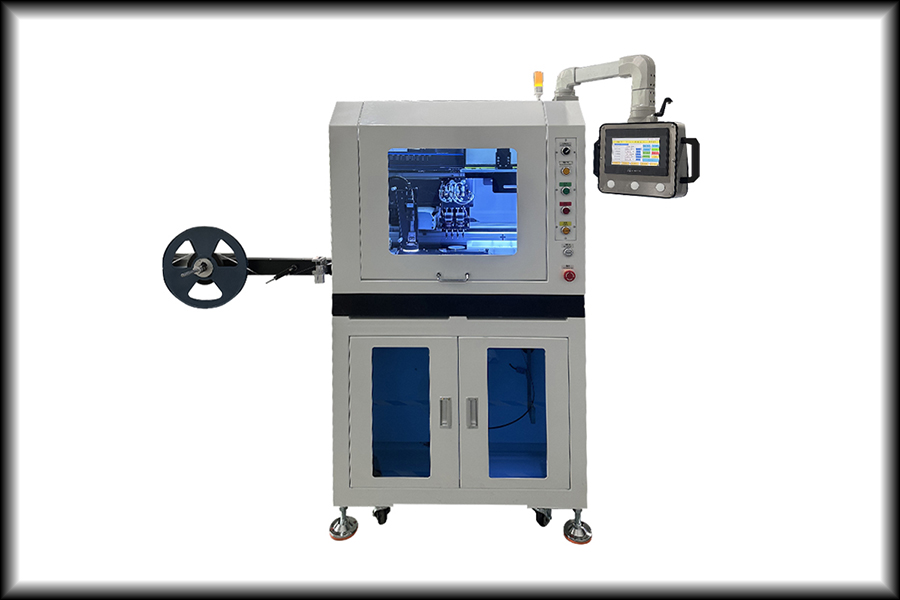

Automatic Flexible Taping Machine
Using a flexible feeding system to handle various sizes and shapes of electronic components, making it suitable for manufacturers with diverse taping requirements and medium-batch production needs.

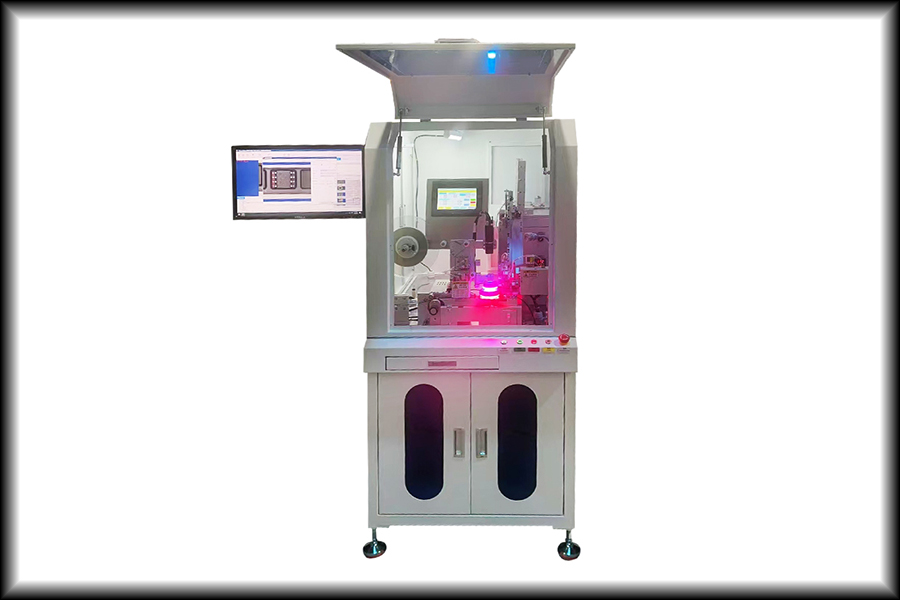

Automatic Tube to Tape Machine
